Gyre 300 Cloud Edition

Innovate Series

Revolutionary

Multi-directional water flow.

Experience the revolutionary multi-directional water flow

The flow cages and directors have undergone a complete overhaul, now with 4 sides horizontal and vertical flow directions.

Flow cage with 4 sides vertical water flow directions
Clip-on flow director
Flow director with 4 sides horizontal water flow directions

How to improve on the Gyre 300 Series' already excellent water flow

There are only 2 sides flow cage and director on the Gyre 300 Series
Whereas there are 4 sides on Gyre 300 Cloud Edition

Try to mix-and-match the following flow to create the ideal flow pattern for your aquarium


Features

Now with over 20 water pattern presets

Easily choose the ideal water pattern for your aquarium with a touch of a button without and programming needed.

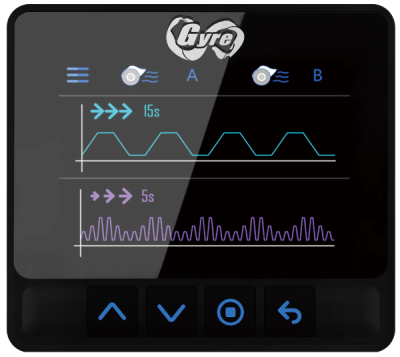

Warning indicators
Main menu
Pump A water flow status
Pump A water movement pattern
Cloud enabled icon
Time and Wi-Fi indicator
Pump B water flow status
Pump B water movement pattern

Cloud enabled

Control your Gyre pumps anywhere around the world over the Cloud with our Syna-G Cloud app


Flow Director

Examples of water flow patterns

Here are just a few samples of what kind of unique water flow patterns that can be created in your aquarium.

Even vertical water circulation

Wide horizontal water flow

Spot horizontal water flow

Uneven vertical water circulation

Swing left horizontal water flow

Swing right horizontal water flow


Dimensions

Gyre 300 CE XF 330

Gyre 300 CE XF 350


Specifications

Model Name XF330 CE XF350 CE
Power Consumption 5-35W 5-52W
Flow Rate 9,000L/H (2,377 US Gal/H) 20,000L/H (5,283 US Gal/H)
Suitable for Aquarium 100-500L/26-132 US Gal 300-3,000L/79-792 US Gal
Power Supply Unit 100-240V/50-60Hz 100-240V/50-60Hz
Dimension L265 x W65 x H34mm
L10.4 x W2.6 x H1.3inch
L325 x W75 x H38mm
L12.8 x W3x H1.5inch
Weight(Pump Unit) 575g/20.3oz 645g/22.8oz
Cable: pump to controller 3m/9.8ft 3m/9.8ft
Cable: PSU to controller 1.5m/4.9ft 1.5m/4.9ft
Glass thickness: standard 15mm/0.59inch Up to 20mm/0.79inch *
Glass thickness: Reinforcement 20mm/0.79inch Up to 25mm/0.98inch **
XF 330
Model Name XF330
Power Consumption 5-35W
Flow Rate 9,000L/H (2,377 US Gal/H)
Suitable for Aquarium 100-500L/26-132 US Gal
Power Supply Unit 100-240V/50-60Hz
Dimension L265 x W65 x H34mm
L10.4 x W2.6 x H1.3inch
Weight(Pump Unit) 575g/20.3oz
Cable: pump to controller 3m/9.8ft
Cable: PSU to controller 1.5m/4.9ft
Glass thickness: standard 15mm/0.59inch
Glass thickness: Reinforcement 20mm/0.79inch
XF 350
Model Name XF350
Power Consumption 5-52W
Flow Rate 20,000L/H (5,283 US Gal/H)
Suitable for Aquarium 300-3,000L/79-792 US Gal
Power Supply Unit 100-240V/50-60Hz
Dimension L325 x W75 x H38mm
L12.8 x W3x H1.5inch
Weight(Pump Unit) 645g/22.8oz
Cable: pump to controller 3m/9.8ft
Cable: PSU to controller 1.5m/4.9ft
Glass thickness: standard Up to 20mm/0.79inch *
Glass thickness: Reinforcement Up to 25mm/0.98inch **

*Up to 15mm or 0.59inch when the two water outlet direction are angled perpendicular to each other.
** Up to 20mm or 0.79inch when the two water outlet direction are angled perpendicular to each other.
